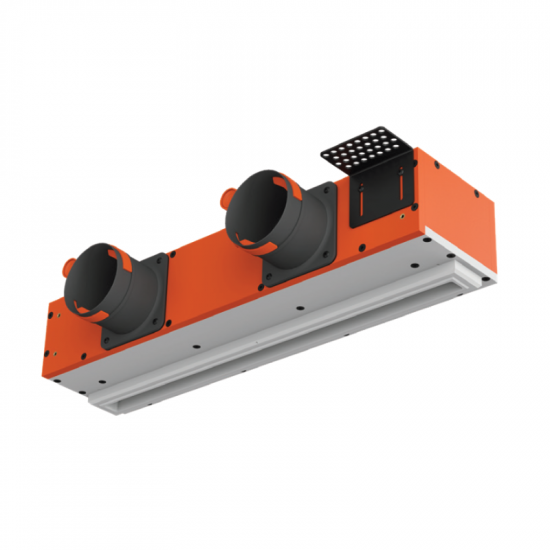

LINEO SINGLE-500/75 built-in PVC diffuser with side connection
This offer ends in:
- Stock: Within 1-2 weeks
- Product Code: LINEO SINGLE-500/75
- Weight: 5.00kg
- Dimensions: 500.00mm x 135.00mm x 110.00mm
ERGOVENT LINEO PRO - hidden linear ventilation diffusers purposely designed to be completely concealed in the plasterboard ceilings and walls. After installation, filler is sealed and diffuser is painted in the same color of the ceilings/walls. Only a minimalistic slot remains visible, becoming a stylish detail of the interior.
LINEO 500 - a model particularly suitable when ceiling height is limited, as it only requires a 12 cm gap between the concrete and plasterboard. For example for timber-framed or modular houses.
TECHNICAL INFORMATION
LINEO ventilation diffusers are adapted for connection to flexible plastic pipes (75 mm).
The duct connections are adaptable for both vertical and horizontal installation. The convenient duct clamping system ensures quick and easy duct connection.
The lower part of the diffuser shall be made of a rigid material having similar expansion and absorption properties to plasterboard. In addition, the plasterboard, the ceiling profiles and the diffuser become a single unit that moves together when fixed. This eliminates the risk of cracks around the diffuser after installation and prolonged use.
- The multifunctional duct connection box is made of anti-static and anti-bacterial plastic
- After final finishing, the airflow can be easily adjusted
- The duct connections are quickly and easily fixed in the required places
- Ergonomic airflow adjustment using the integrated balancing valve.

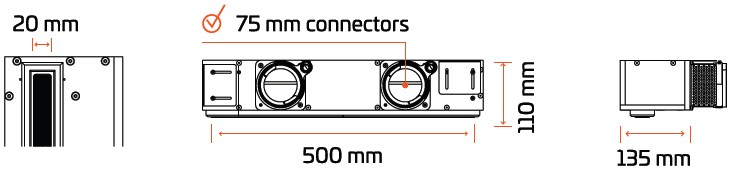

SIZES
AIRFLOW
Diffusers have an airflow balancing valve located inside the diffuser, which can be easily controlled from the outside.
The open/close position of the balancing valve is determined using a balancing rod.
- Insert the balancing rod into the diffuser grille until it rests against the valve.
- The measurement shall be read from the ceiling line.
- The valve position is indicated on the rod.
The valve balancing rod is included with the diffuser.
DESIGN OPTIONS
Once installed, the diffuser is completely concealed under the plaster surface and painted to match the rest of the area, creating a monolithic and modern interior.
