Combi Comfort set: Humidifier/Cooler HEPCC
This offer ends in:
- Stock: Within 1-2 weeks
- Product Code: HomEvap Combi Comfort (HEPCC)
- Weight: 10.00kg

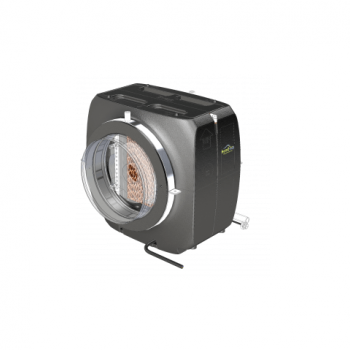

COMBI COMFORT – Humidifier/Cooler HEPCC

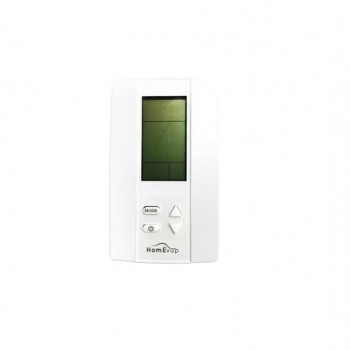

The HomEvap Combi Comfort humidifier acts as a basic cooler. It has a built - in controller that automatically controls both humidity and cooling. An additional advantage is that on really hot days it is possible to get extra cooling by activating the humidifier!
Operating principle:
The humidifier must be installed on the supply air duct after the air handling unit. If the supply air humidity is lower than the one set in the controller, humidification will start. The principle of operation is as follows: The air handling unit heats the incoming outdoor air, as a result of which the relative humidity decreases, the dry air enters the HomEvap, which, using the principle of water evaporation, raises the humidity to the value set in the controller. However, given the enthalpy line of the Molier diagram, the air cools down and air temperature compensation is required. Only when the air temperature falls below 17°C , the built - in electric PTC heater activates. In this case, the maximum wetting capacity is 3 kg/h. The amount of water consumed is precisely controlled by economical water consumption software.
Indirect cooling:
The extract air is cooled, thus cooling the heat exchanger (recuperator) of the air handling unit, which becomes cold. The warm outdoor air is cooled before it is introduced into the room by flowing through a cool heat exchanger. This function is activated when the outside temperature rises above 18°C and there is a demand for air cooling.
Direct cooling:
The HomEvap humidifier is placed on the supply air duct behind the air handling unit. It only starts when the outside air temperature is too high and the value set in the controller is lower than the temperature measured at home. Excessive humidification is prevented by a combined duct - type humidity/temperature sensor. This function is activated when the outdoor temperature rises above 22°C and is in demand.
IMPORTANT!
HomEvap Cooler operates in a limited range of air productivity, exceeding it may affect its efficiency in cooling and humidifying the temperature.
Advantages:
- Legionella safe
- Quiet
- Economical
- Autonomous operation

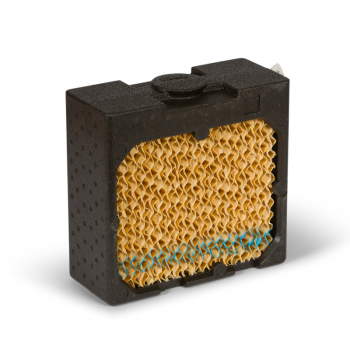

The cooler assembly includes:

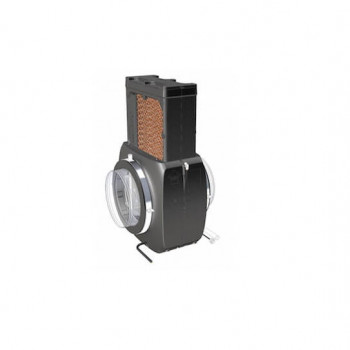

Assembly scheme:
TECHNICAL DATA:
| Dimensions (LxWxH): | 258x344x335 mm |
| MAX cooling capacity: | 1950 W |
| Electricity consumption: | 20 VA |
| MAX water consumption: | 5 l/h |
| Water supply connection: | 3/4 internal thread with connection 4 mm |
| Water drainage connection: | 15 mm hoses with sleeve 50 cm |
| MAX air flow: | 600 m3/h |
| Duct connection diameter: | Ø200 mm |
