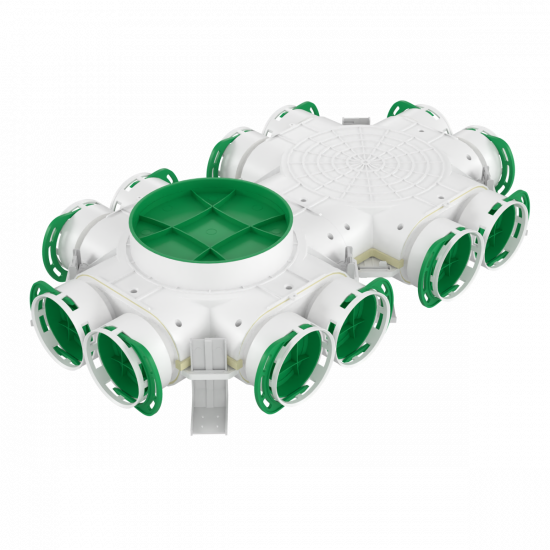

Air distribution manifold Awenta VCB160-12/90
- Stock: In Stock
- Product Code: Awenta VCB160-12/90
- Weight: 3.00kg
Awenta PRO VCB160-12/90 manifolds allow you to connect up to 12 Ø90 mm ventilation outlets. Those that are not used can be closed with the caps included in the set.
AWENTA PRO air distribution manifolds are equipped with a patented mounting system that allows you to precisely adjust the distance between the manifold and the mounting surface and easily remove the manifold if necessary. Independently adjustable brackets allow the device to be installed horizontally or at an angle.
VCB series manifolds are designed for installation in the heated area of a building; however, they can also be installed in cold areas by insulating them with a layer of insulation (min. 15 cm).
They can be placed in the floor or ceiling or installed under plasterboard panels.

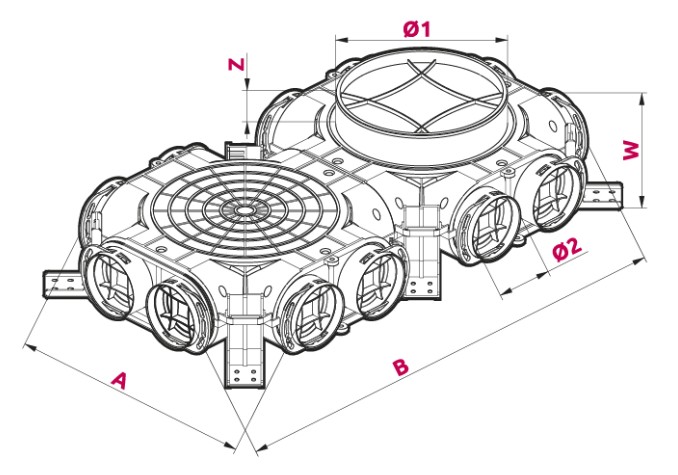

SIZES:
| Ø1 | Ø2 | A | B | W | Z | |
| VPB160-12/90 | 160 | 90 | 407 | 697 | 104 | 38 |

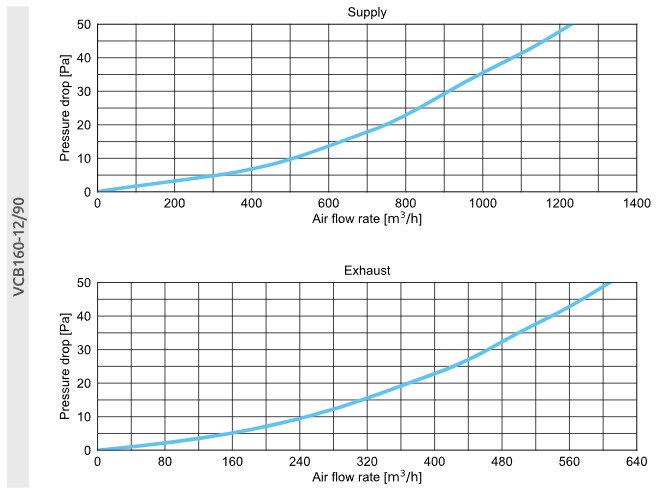

AIR FLOW CHARACTERISTICS:
