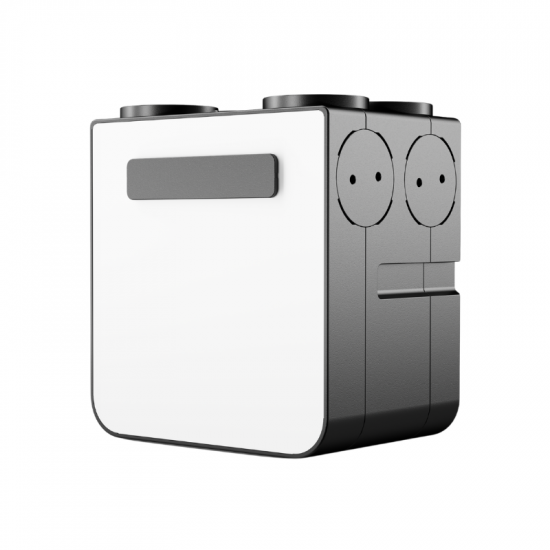

The Xhouse 500 is a compact and highly efficient heat recovery unit designed for modern single-family homes and larger apartments. Thanks to the MultiFlow system, it offers two nominal capacities in a single unit (400 or 500 m³/h), allowing it to perfectly adapt to the property’s needs.

The unit uses an enthalpy heat exchanger (ERV) to recover both heat and humidity. A built-in Wi-Fi module, the ability to connect to a smart home system (Modbus RTU), and an automatic bypass ensure maximum comfort and easy operation.

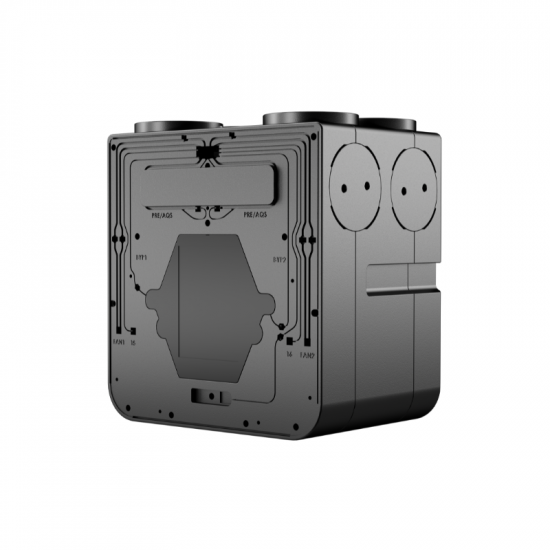

The lightweight EPP housing makes installation quick and easy—connection ports can be positioned at the front or sides, and left/right orientation can be set with a single button.

Key benefits:

• Enthalpy ERV heat exchanger—heat and moisture recovery
• Airflow up to 500 m³/h
• Reduced indoor air drying during the heating season
• Integrated preheater
• Low noise level
• Constant airflow control
• Bypass function for summer mode
• Sensor and smart home integration

EQUIPMENT PERFORMANCE

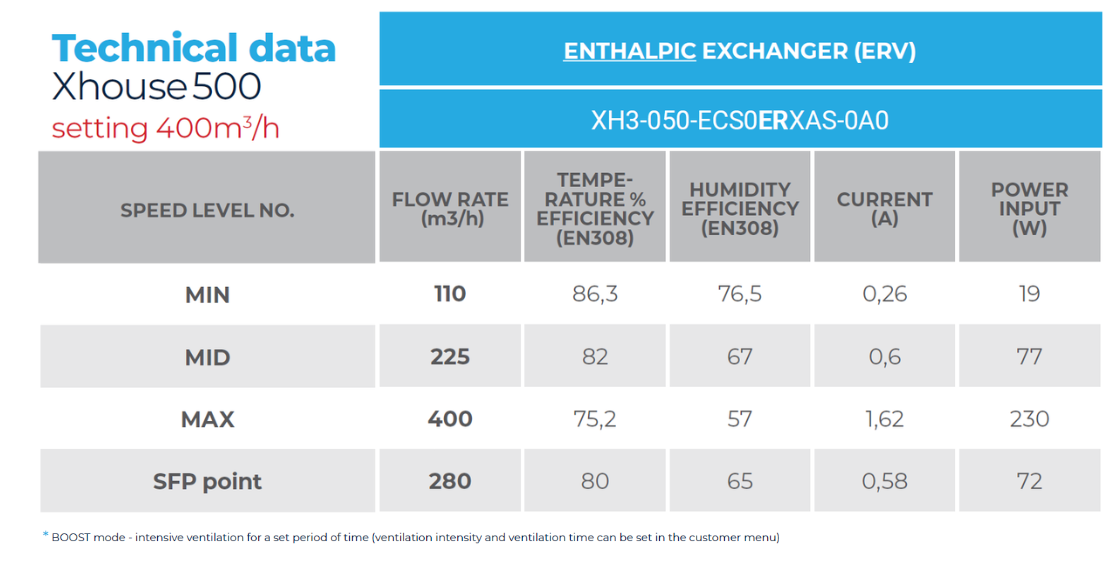

TECHNICAL SPECIFICATIONS AT NOMINAL CAPACITY 400 m²

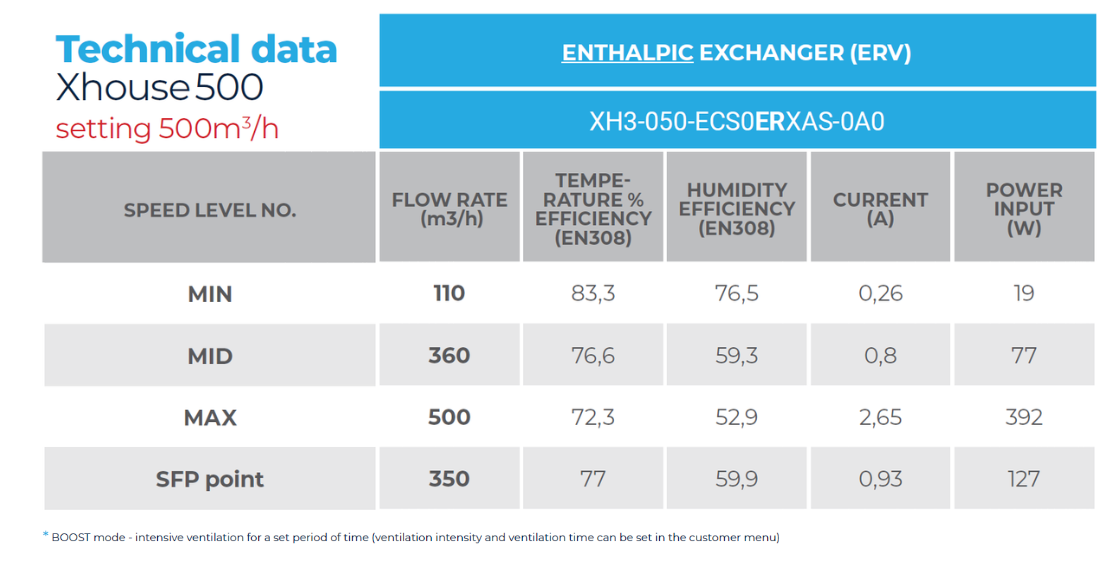

TECHNICAL SPECIFICATIONS AT NOMINAL CAPACITY 500 m²

TECHNICAL DATA
